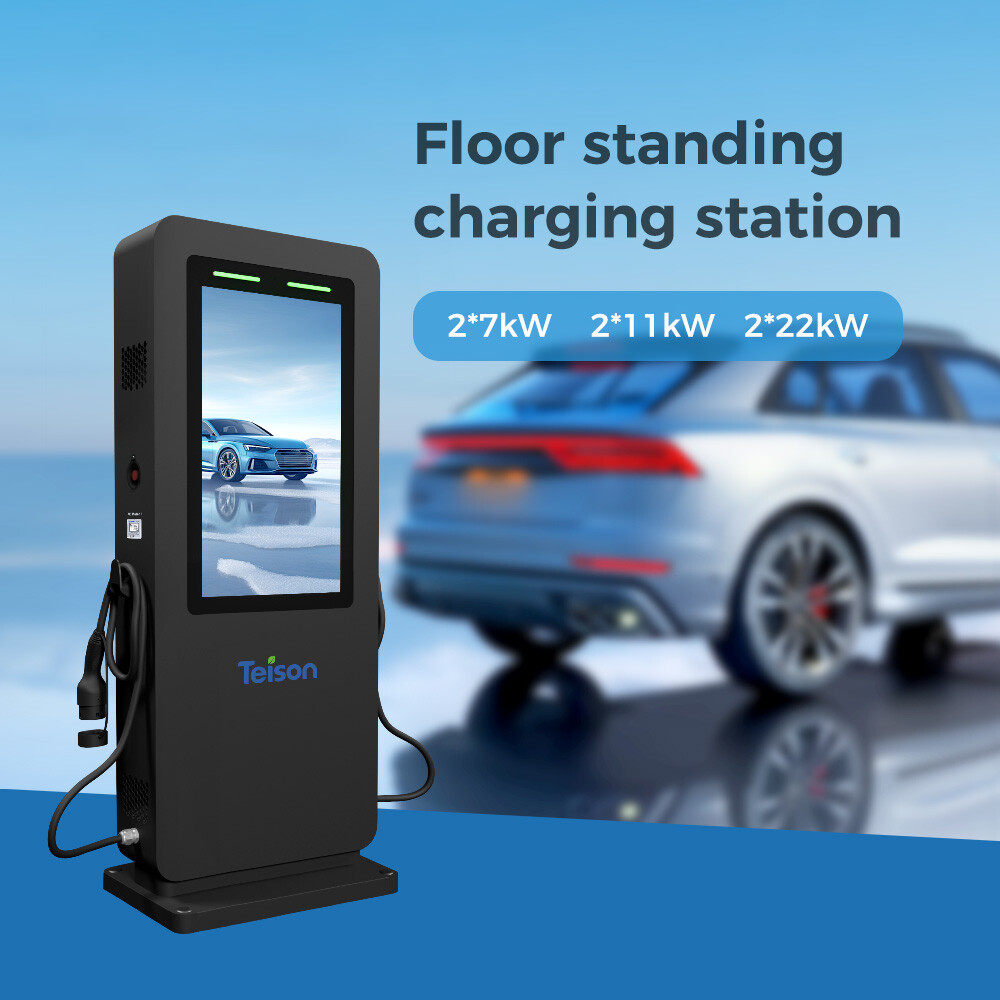

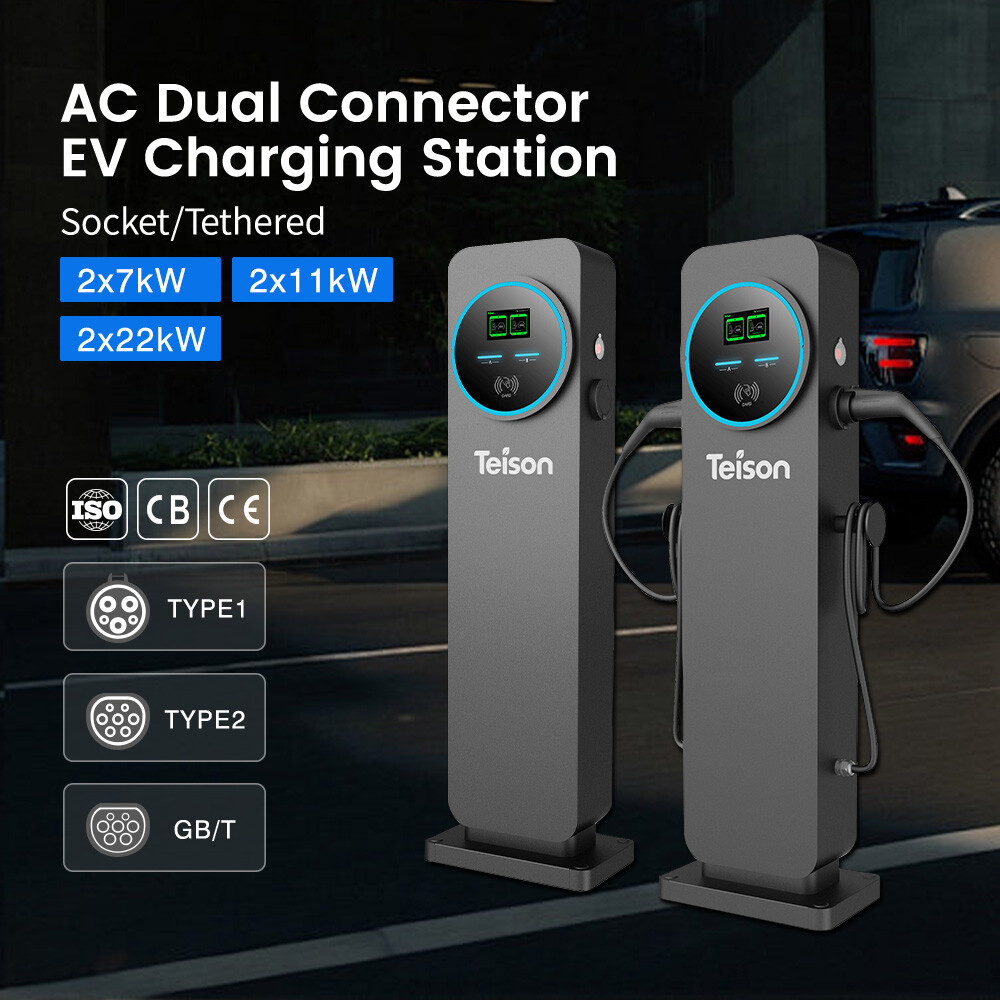

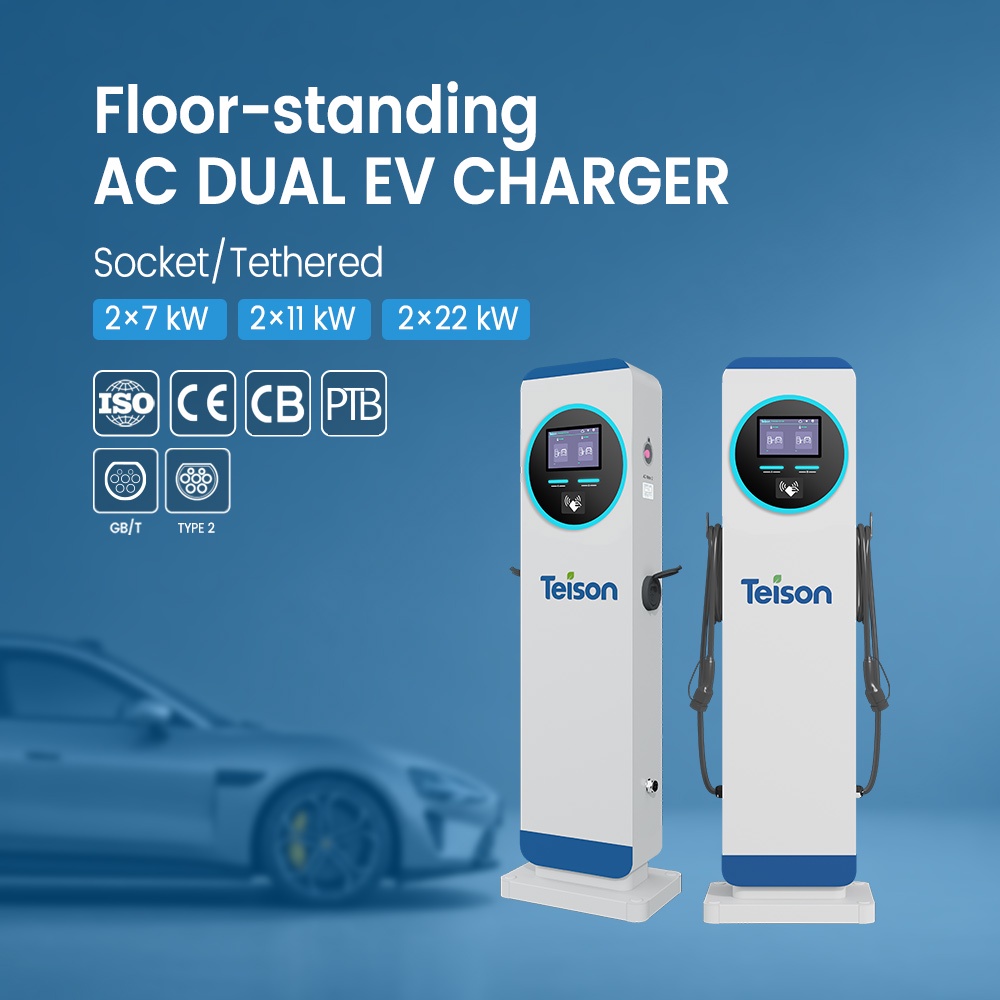

Floor Dual EV Charger

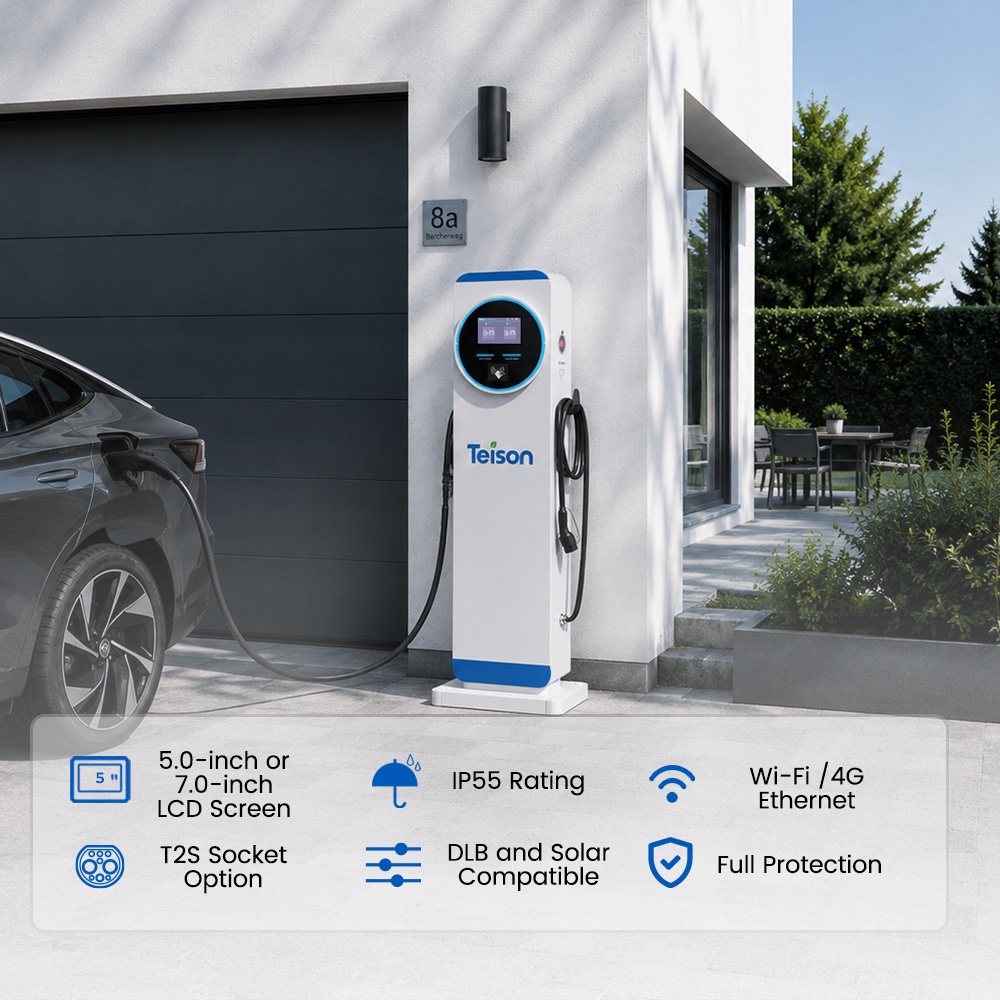

Floor Dual EV Charger is a three phase dual gun/Socket AC charging station, packed with features and ideal for domestic and commercial use.

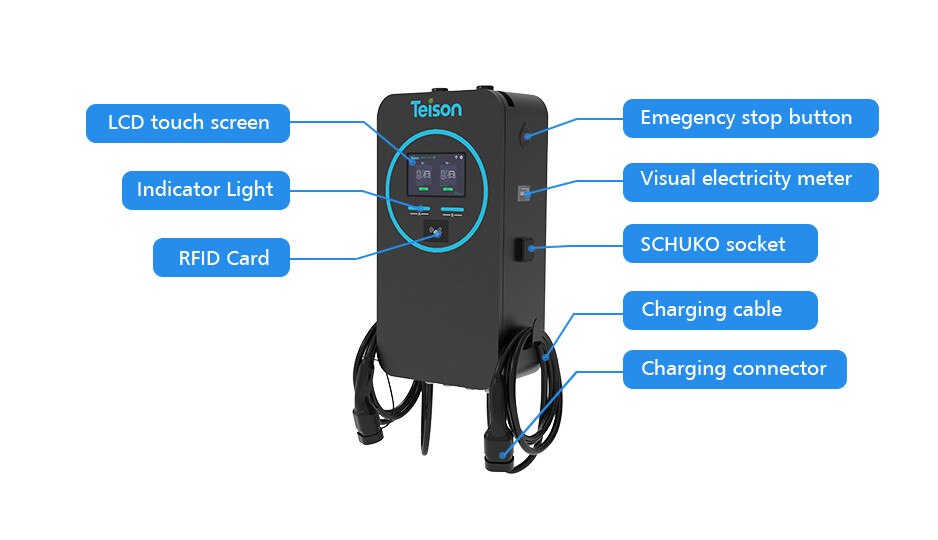

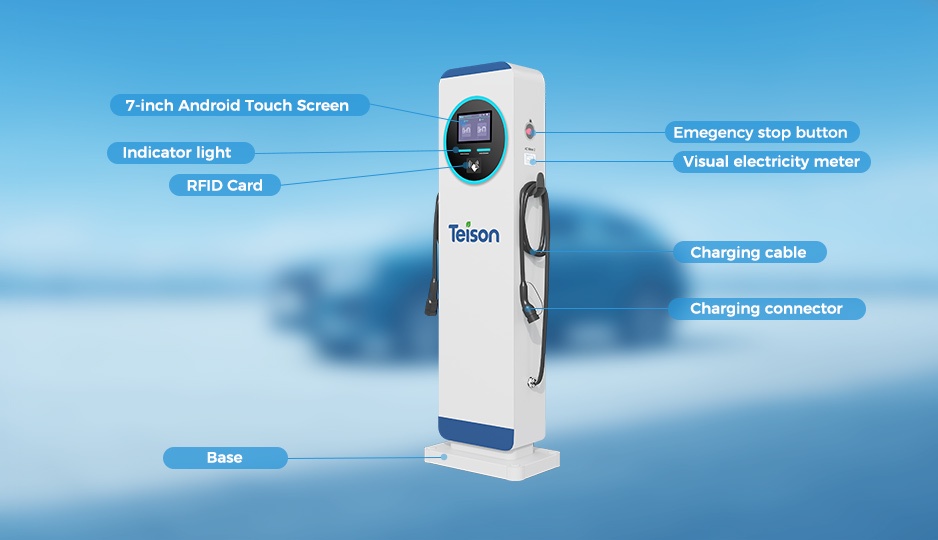

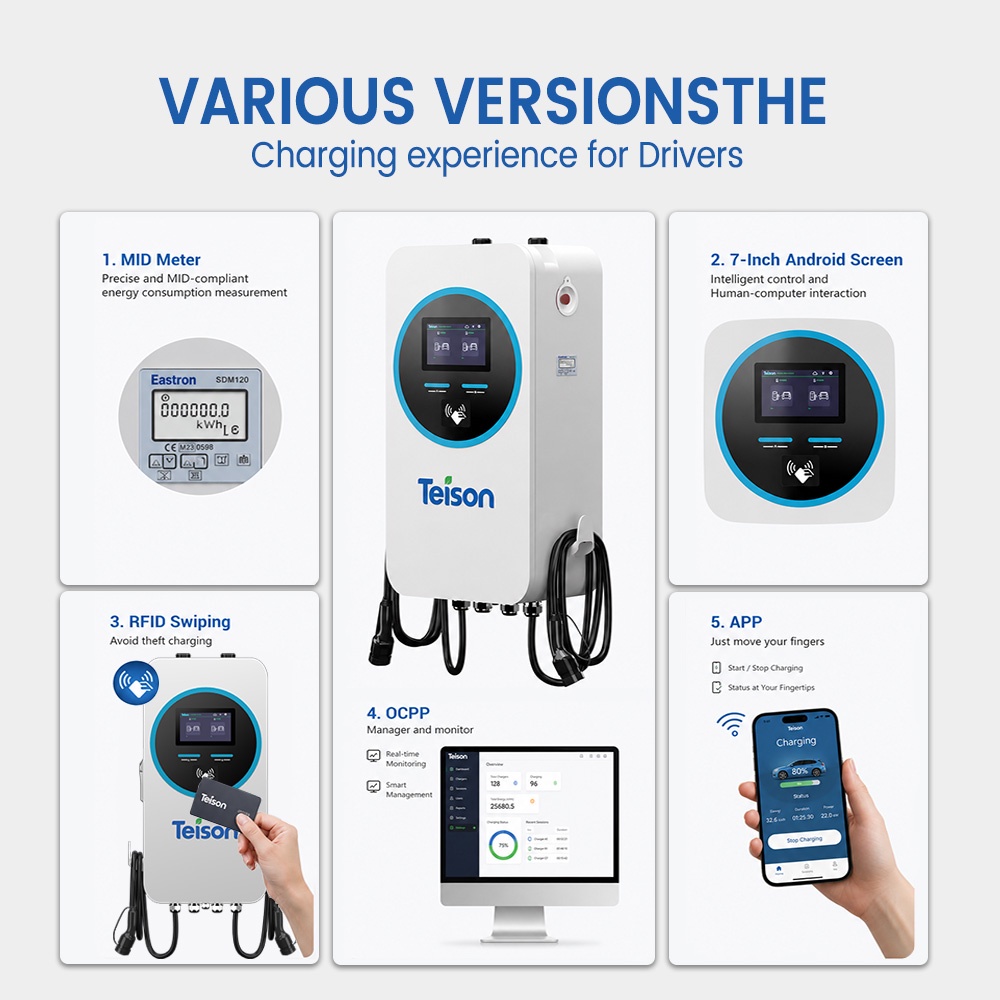

Product features

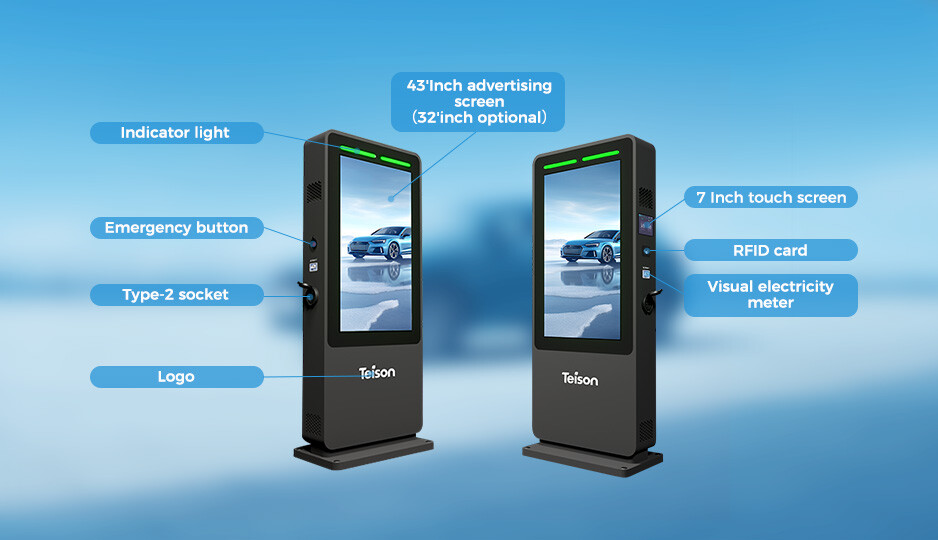

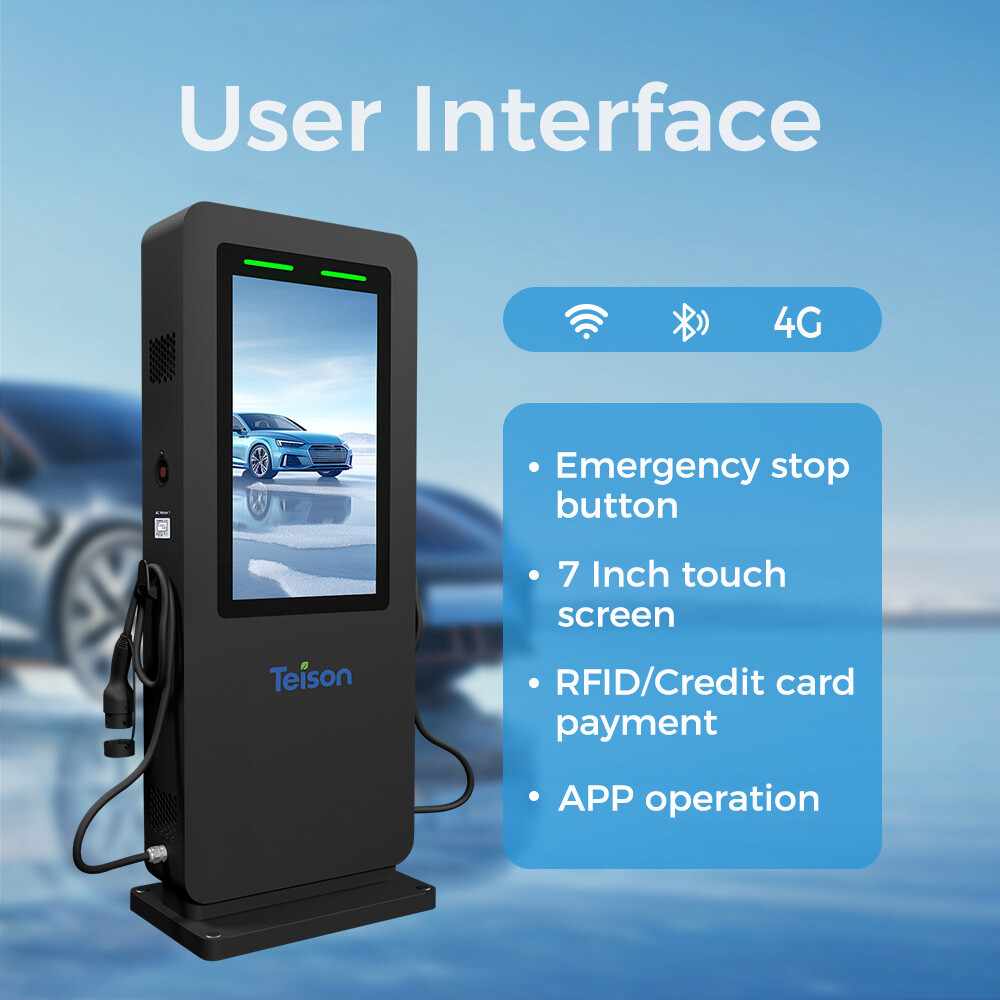

5 inch HD touch screen
Easiest user interaction and real-time status view
RFID Sensor
Identification & payment solution

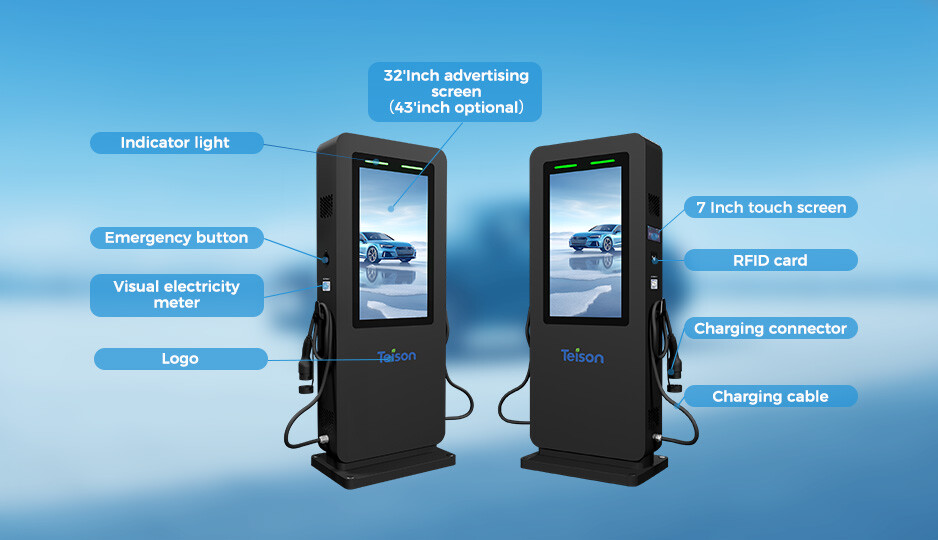

Indicator light
Showing real time wallbox status
Emergency button
Press to cut off the power immediately
TPU cable
4meter cable with excellent durability and top cold resistance at-30°C
TUV approved connector
Completed shaped and easy hold; Silver plated terminals to minimize wear and tear on EV charging socket
Designed for future smart charging network
- Internet connection automatically setting with best logic to save 4G save cost;
- OCPP1.6 full function, supporting unified management through Teison OCPP Platform;
- Have a full logic written software to meet load balance of all type of applications for private and commercial;
- Remote charger conditions track and check platforms, can also remote update software or fix the faults occurred;
- Backend charger payment managing system available with fully settled functions and designs, RFID/credit card through Paypal or Stripe via APP "My Teison".
Highlights
- Power Capacity: 2*11KW/2*22KW
- 4.5M TPU Charging Cable(Customizable)
- 5" LCD Touch Screen
- Integrated with Ethernet/Wifi/RFID (4G as optional)

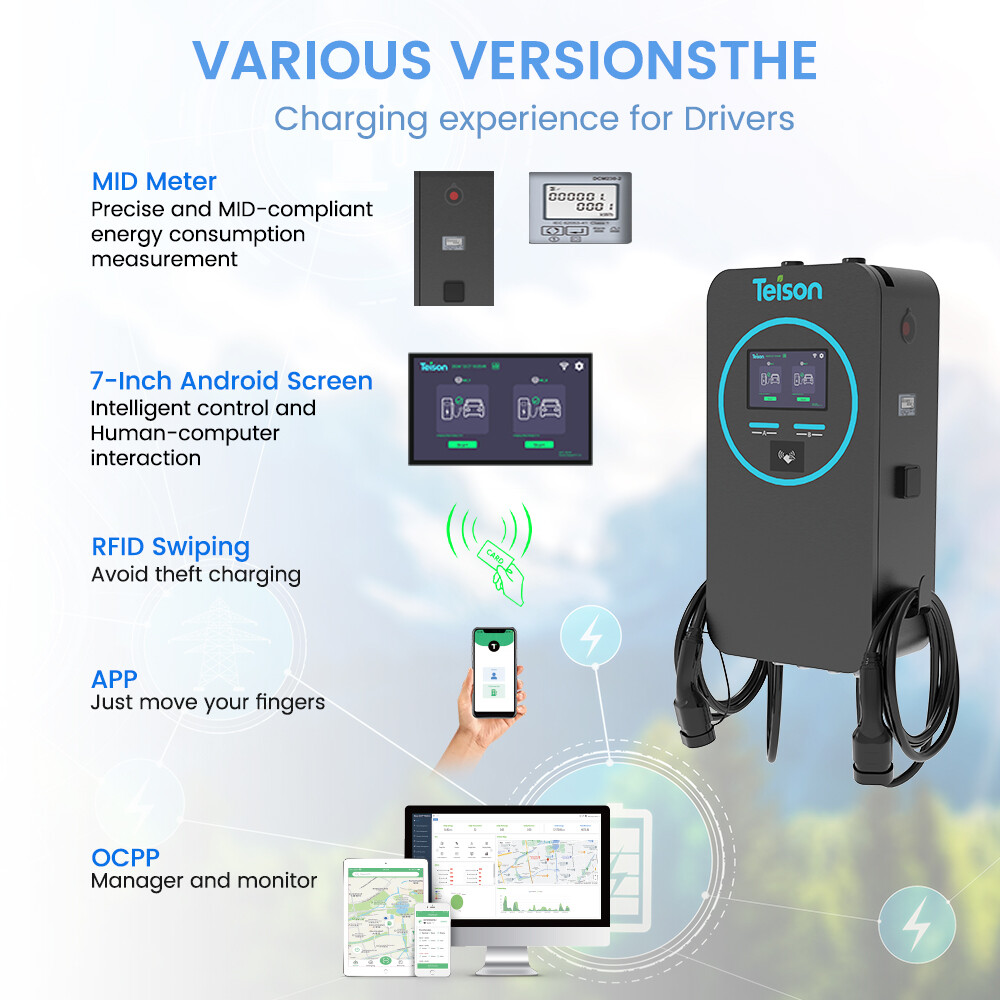

- With built-in MID Certificated Meter
- RCD AC30mA +DC6mA
- Protection Level: IP55
‹
›
‹
›
AC Smart OCPP Twins
3phase, 2*11KW/2*22KW
MyTeison App Control (Wi-Fi, Ethernet, 4G)
RFID Card with Stored-Value Capability
OCPP1.6J
Local Whitelist (Offline RFID Card Swiping)
Support for Teison Platform Full Features
Dual Output
Parameter
| Specification | ||||
| Model | Teison Smart Twins | |||
| Electrical Properties | ||||
| Rated Voltage | 380V±10% AC | |||
| Max Output Current | 2*16A | 2*32A | ||
| Frequency | 50/60HZ | |||
| Max Output Power | 2*11kW | 2*22kW | ||
| Design | ||||
| Emergency Stop Button | YES | |||
| Display | LCD touch screen | |||
| Status Indication | LED status indicator | |||
| RFID Function | YES | |||
| Energy Meter | On board power meter | |||
| Optional: MID Power meter | ||||
| RCD | 30mA AC + DC 6mA | |||
| Housing Material | SPCC Carbon steel | |||
| Front Panel | PC | |||
| Installation Method | Floor-stand | |||
| Network Gateway | LAN | |||
| Optional: 4G / Wifi | ||||
| Communication Protocol | OCPP1.6(JSON) | |||
| Safety Standard | EN IEC 61851-1:2019; IEC 61851-1:2017; EN IEC 61851-21-2:2021; | |||
| EN IEC 61000-6-1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2021; | ||||
| EN IEC 61000-6-4:2019; ETSI EN 300 328 V2.2.2:2019; | ||||
| ETSI EN 300 330 V2.1.1:2017; ETSI EN 301 489-1 V2.2.3:2019; | ||||
| ETSI EN 301 489-3 V2.1.1:2019; ETSI EN 301 489-17 V3.2.4:2020; | ||||
| EN IEC 62311:2020 | ||||
| Warranty | 2 years | |||
| Environmental Performance | ||||
| Protection Level | IP55 | |||
| Temperature/Humidity | ﹣30~50℃/5%~95% without condensation | |||
| Working Altitude | ＜2000M | |||
| Application Site | Indoor/Outdoor | |||
| Packing Details | ||||

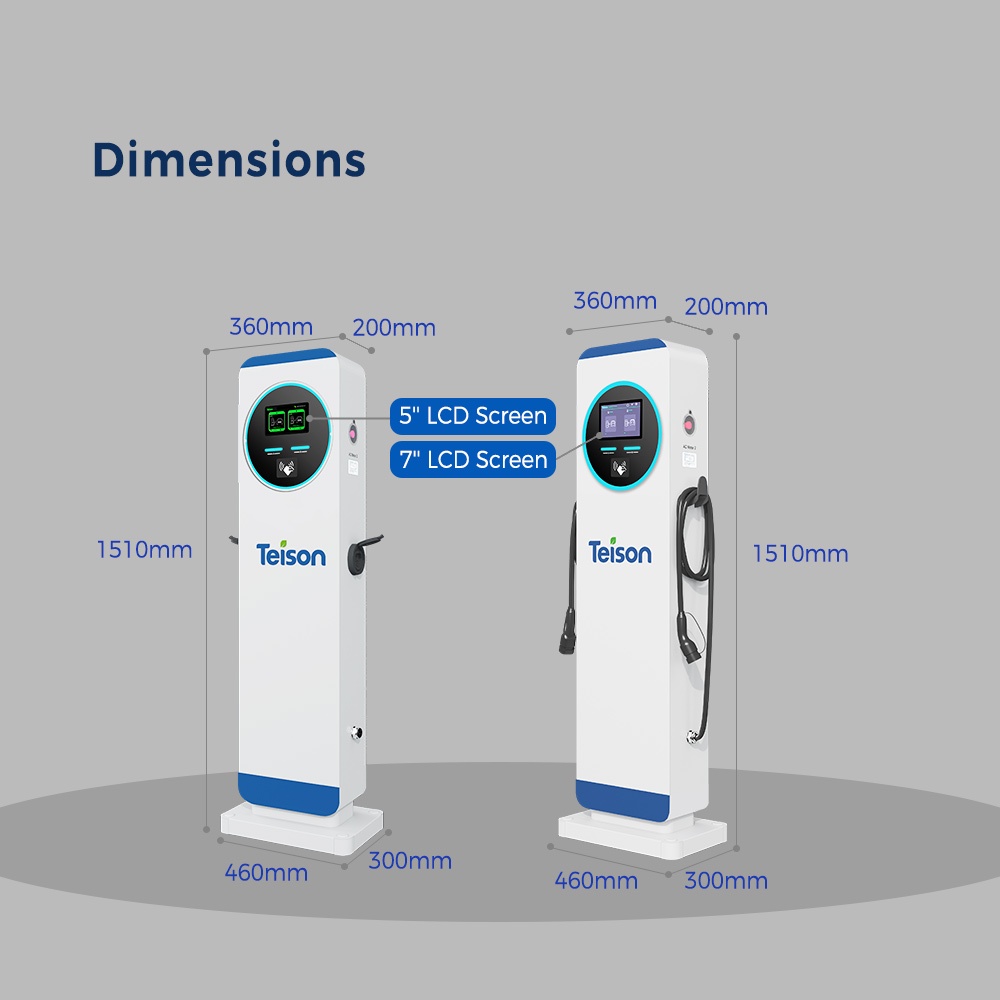

| Product Size | 360*200*1510 (mm) | |||
| Base Size | 460*300 (mm) | |||
| Optional Configure | ||||
| Energy Meter | MID certified | |||
| Network Cateway | Ethernet/4G | |||
